Disc Wood Chipper | Chipping Machine | Wood Slicer

small wood chipper machine
The electric wood chippers are a must for many wood processing plants and are mainly used to process wood chips of uniform size. The commercial disc wood chipper is designed in a variety of styles according to different production scenarios to meet different customer needs. The wood material used for chipping can be either peeled or unpeeled.

Description of disc wood chipper

The electric wood chippers are a must for many wood processing plants and are mainly used to process wood chips of uniform size. The commercial disc wood chipper is designed in a variety of styles according to different production scenarios to meet different customer needs. The wood material used for chipping can be either peeled or unpeeled.

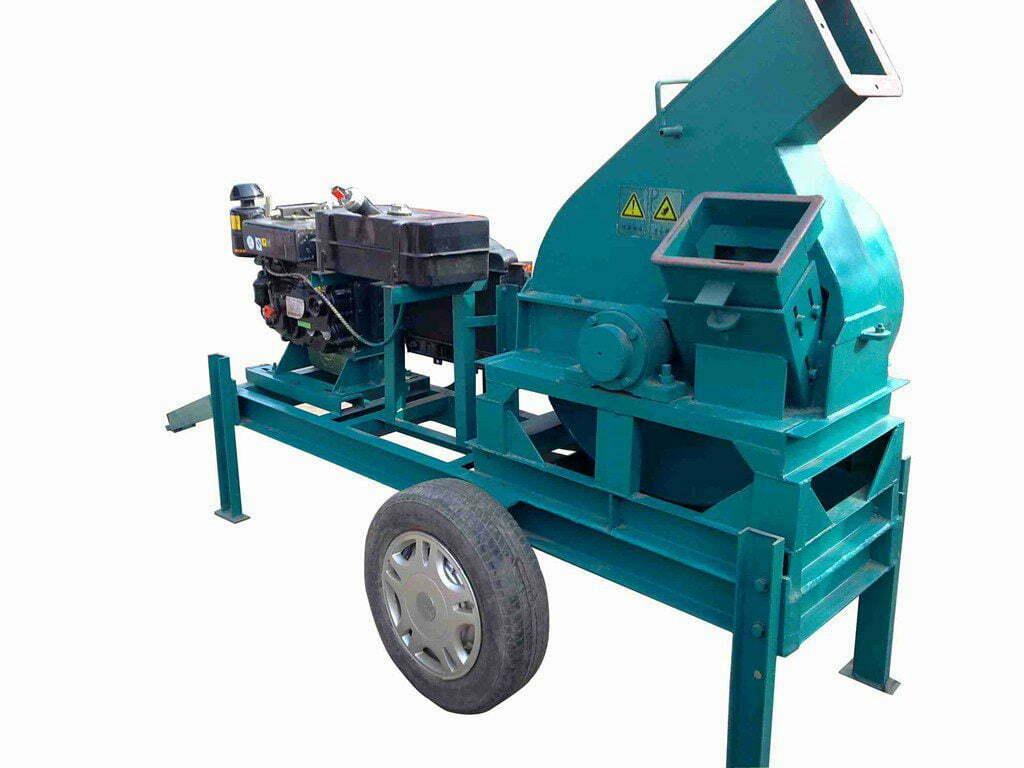

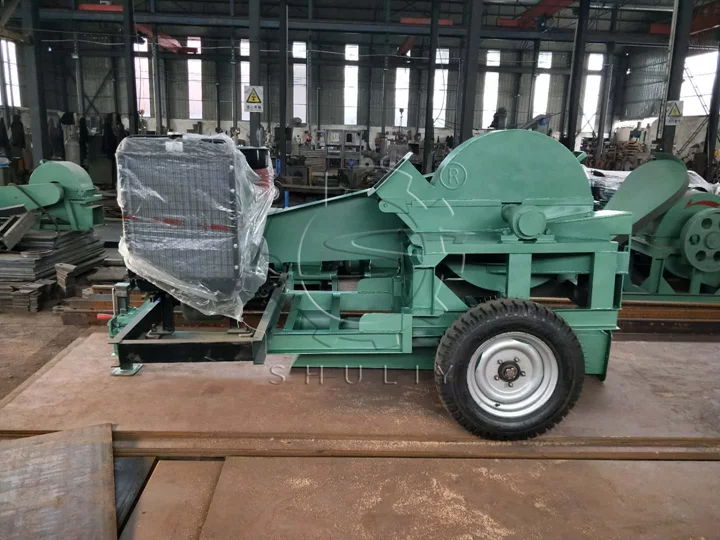

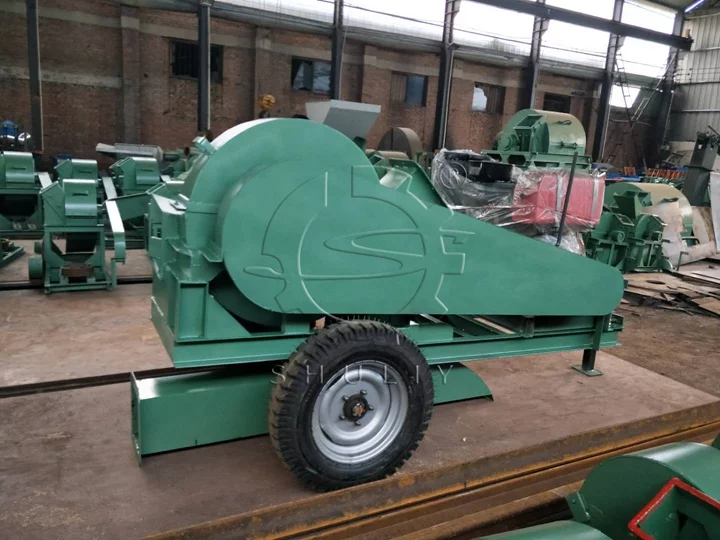

disc wood chippers with wheels
disc wood chippers with wheels

Technical data of electric wood chippers

ModelPowerCapacityNumber of bladesInput sizeWeight
SL-4007.5kw0.8-1.5t/h3pcs150*150mm160kg
SL-60015kw1.5-2.5t/h3pcs180*150mm380kg
SL-80022-30kw3-6t/h4pcs200*200mm550kg
SL-95037-45kw5-8t/h4pcs230*250mm900kg
SL-115055-75kw8-13t/h4pcs300*330mm2400kg
wood chipper machine parameters

Structural features of wood chipper machine for sale

Shuliy machinery designs and manufactures the most advanced wood chipping equipment in the industry, which has been exported to many countries in the world. The main structure of our disc wood chipper includes frame, frame, coupling, motor, cutter head, pulley, and so on.

main parts of the disc wood chipper
main parts of the disc wood chipper

The structure of the disc wood chipper is similar to that of wood shaving machines, but their cutter disc structure and shape are very different. According to different application environments, disc wood chippers can be divided into upper discharge wood chippers and lower discharge wood chippers.

disc wood chippers with various designs
disc wood chippers with various designs

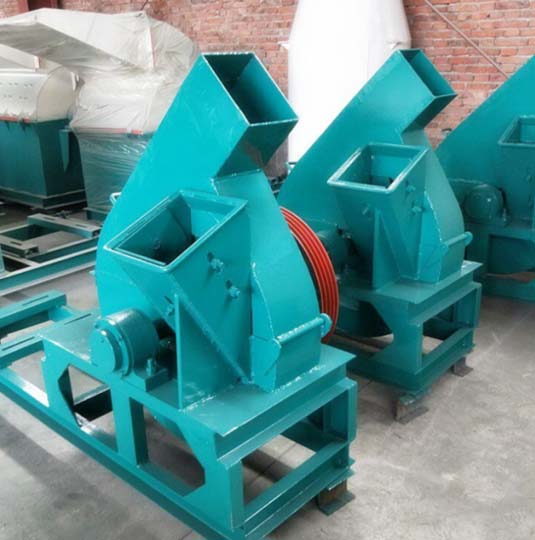

Upper-discharge wood chipper

The wood chippers for sale of the upper discharge are generally smaller in size, and can be fixed in a specific working place or can be installed on a frame with wheels for easy movement when in use.

The design of the upper discharge of the wood chipper is generally very suitable for its mobile work. The processed wood chips can be dropped directly into the storage equipment (such as the car bucket).

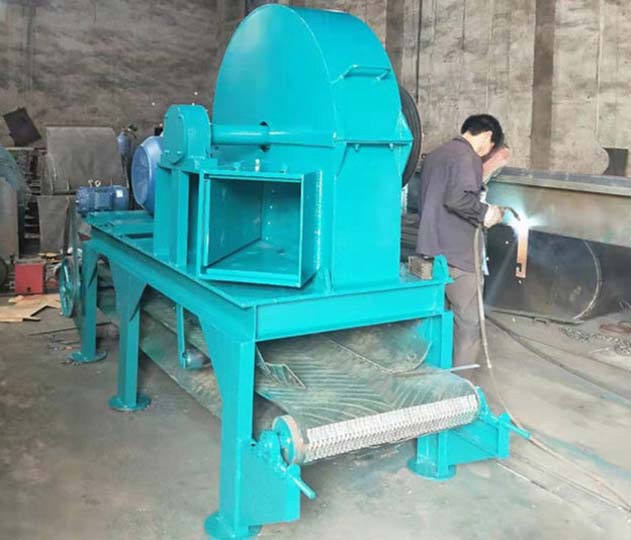

Lower-discharge wood chipper

Generally, the wood chipping machine of the lower discharge is larger, and it is generally used for continuous production in a wood processing factory. The machine is also available in fixed and mobile types.

When the lower discharge chipper is working, an automatic conveying device is generally installed below the discharge port, which can automatically convey the processed wood chips to the storage bin.

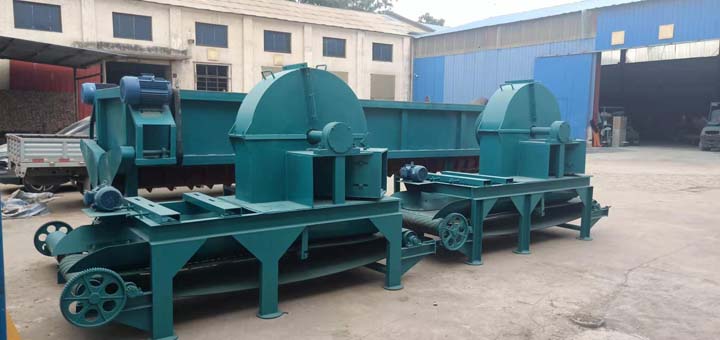

large wood chipper machine for sale
large wood chipper machine for sale

Advantages of Shuliy disc wood chippers

1. Our wood chipper models and types are very complete, no matter what production needs our customers have, we can recommend the most suitable wood chipping equipment.

2. In order to ensure the quality of the machine and extend the service life of the machine, we usually use thicker steel plates and more elaborate processing methods when manufacturing this wood chipper.

3. The diameter of the raw material suitable for the processing of the disc wood chipper is generally between 22cm-55cm, and the output of the disc wood chippers ranges from 500kg/h to 15T/h.

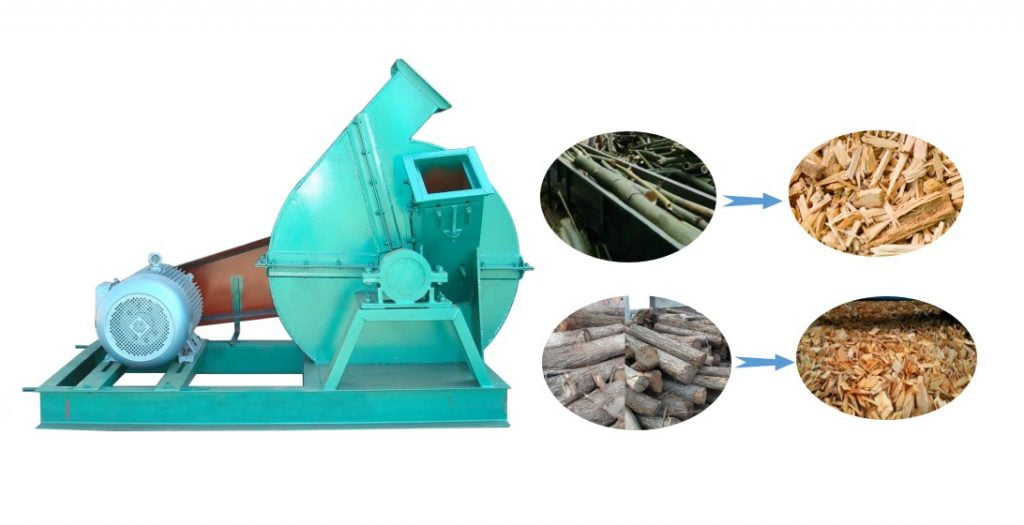

applications of disc wood chipper machine
applications of wood chipper machine

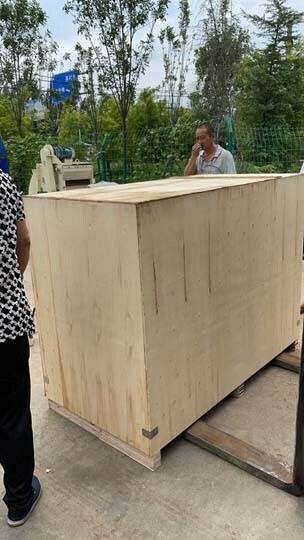

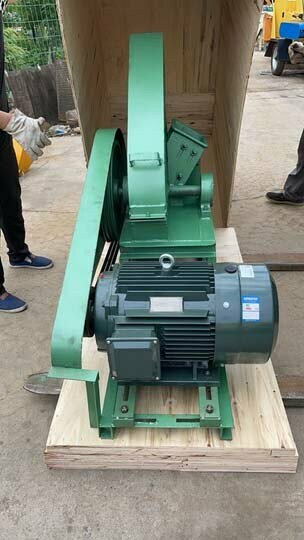

packaging and shipping of wood chippers
packaging and shipping of wood chippers

Working video of the wood chipper machine

Shuliy wood chipper machine packaging and exporting

The disc chipper has a compact structure and a very high work efficiency, which is very popular in overseas markets. Currently, we export a large number of wood chippers to Southeast Asian countries and African countries, such as Indonesia, Vietnam, the Philippines, Kenya, Uganda, Ethiopia, Rwanda, South Africa, etc. We also manufacture wood shaving machines, wood crushers, and other wood processing equipment, if interested, consult us anytime.
