Wood debarkers are indispensable tools in the timber and forestry industry, designed to efficiently remove bark from logs or trees. These machines, commonly known as wood debarkers, play a vital role in streamlining the wood processing workflow, enhancing product quality, and optimizing raw material utilization.
From small, portable units to large, industrial-scale equipment, wood debarkers are instrumental in transforming raw timber into high-quality products by expertly peeling away the outer layers, improving both appearance and process efficiency.
Vertical wood debarker’s brief description
This wood peeling machine has the advantages of a compact structure and simple operation. This new log debarking machine can better peel dry and wet logs with a diameter ranging from 150mm to 360mm.
This commercial wood peeling machine is a piece of important processing equipment for many pulp and paper mills, wood processing plants, fiberboard manufacturing plants, and wood chips production plants.
Technical parameter of the vertical log debarker
Basic parameters of Shuliy wood debarkers
Model | SL-150 | SL-220 | SL-260 | SL-300 |
Max diameter | 150mm | 220mm | 260mm | 300mm |
Knife quantity | 4 pcs | 4 pcs | 4 pcs | 4 pcs |
Main power | 4.0kw | 5.5 kw | 7.5 kw | 7.5 kw |
Driving power | 1.5 kw | 1.5 kw | 1.5 kw | 1.5 kw |
Parameters of two hot-selling wood debarker machines
Model | SL-260 | SL-300 |
Max diameter | 260mm | 300mm |
Knife quantity | 4 pcs | 4 pcs |
Power | 7.5kw | 11kw |
Weight | 1200kg | 1500kg |
Dimension | 2200*1300*1010mm | 2500*1800*1100mm |

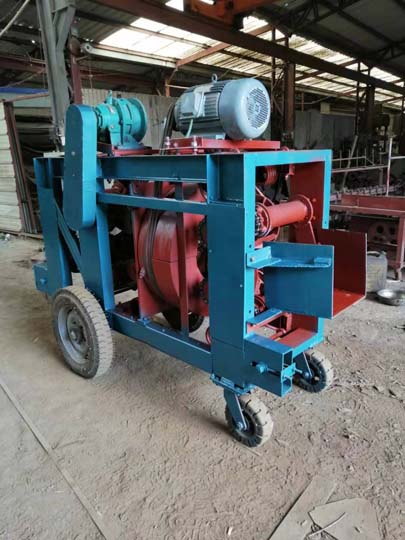

Structural features of small wood debarker
The electric wood peeler debarking machine is designed as a ring structure, which is mainly composed of a host, a feeding system, a discharging system, a transmission device, and other parts. Among them, its feeding system and discharging system are mainly automatic conveyor belts. The main part is a group of ring-shaped cutters and racks.
The wood used for peeling may be dry wood or wet wood. This wood peeling machine has the best peeling effect on semi-humid logs. The logs peeled by this machine are usually further processed into various boards and chips.
How to debark logs with a vertical log debarker?
When using this machine, first put logs, branches, and other wood into the drum of the machine. Then close the feed baffle and start the machine to run clockwise. The wood will run with the machine in the drum, and the peeling knife of the machine can quickly peel the skin from the wood.
After about ten minutes, turn off this vertical log debarker machine, open the discharge baffle, and then start the machine and run counterclockwise for two minutes, the peeled wood can be automatically sent out from the drum. The log peeling rate using this machine can reach 95%.
Features of Shuliy wood debarking machine
1. The machine has different models, which can quickly peel the logs of different diameters. We can help customers choose the appropriate machine model based on the average size of the customer’s raw materials.
2. The cutting material of this machine is good, with high hardness and wear resistance. Therefore, the service life of this log peeling machine is very long.
3. The machine is very suitable for small and medium-sized wood processing plants. When the machine is working, the noise is small, the overall operation is stable, the operation is simple, and the degree of automation is high.
Horizontal wood debarker’s brief introduction
This horizontal log debarker is also known as the groove wood peeler machine. The electric wood debarking machine can quickly peel dry and wet wood or branches with a diameter of less than 500 mm. The model of this machine is mainly set according to the length of the logs to be peeled.
Log debarker machine’s working video
Technical parameter of the wood debarker for sale
Model | SL-S500 | SL-S600 | SL-S700 | SL-S800 |
Wood diameter(mm) | 50-200 | 50-300 | 50-400 | 50-500 |
Wood length(m) | 2-4 | 2-5 | 2-5 | 2-6 |
Capacity(T/H) | 5-6 | 6-8 | 10-12 | 15-18 |
Peeling rate | >95% | >95% | >95% | >95% |
Roller diameter(mm) | 250 | 274 | 370 | 540 |
Roller rotational speed(rpm) | 230 | 230 | 200 | 180 |
Roller length(mm) | 580 | 580 | 580 | 580 |
Power(kw) | 7.5*2 | 7.5*2 | 11*2 | 15*2 |
Weight(T) | 2.5 | 2.8 | 3.5 | 6 |
Size(L*W*H)(m) | 6*2.1*1.5 | 6.02*2.26*1.52 | 6*2.5*1.6 | 6*2.8*1.7 |
Main structure of the horizontal log debarking machine
The horizontal log debarker is quite different from the drum type wood debarker in outlook and functions. The main structure of the horizontal wood peeling machine is a u-shaped trough. There are usually one or two spiral cutters inside the tank, which are mainly used for peeling all kinds of logs.
The number of spiral cutters in the machine tank is determined according to the processing capacity and model of the machine. Generally, the log peeling machine with two spiral cutters has a larger processing capacity.
The bottom of the U-shaped groove of the wood peeling machine generally has many square holes, which can make the bark and other debris leaks during the processing.
Generally, in many large and medium-sized wood processing plants, producers will also choose to install an automatic conveyor belt under the log peeling tank. So that during the production process, bark and other debris can be automatically transported to a fixed pile to reduce the labor work of manually cleaning the wood peels.
Working principle of the horizontal wood peeling machine
The horizontal wood peeling machine can allow the logs or branches used for processing to have a curvature of less than 8%, so it has strong adaptability. The electric wood peeling machine uses the force generated by the rotor with the peeling teeth to make the logs make a circular movement in the silo groove board, and also make a slewing movement around the axis of the wood section and irregular jump.
In this way, between the wood and the teeth, between the wood and the wood, and between the wood and the tank, there will be constant friction, impact, squeezing, and the bark will be quickly separated, achieving the effect of efficient peeling.
Sales market for Shuliy wood debarkers
The above two types of wood peeling equipment are log peeling machines often sold in our factory. So far, we have successively exported wood peeling machines to more than 60 countries and regions, such as Malaysia, the United States, Canada, Thailand, Japan, Chile, Brazil, France, Bulgaria, the United Kingdom, the Netherlands, Saudi Arabia, Egypt, Turkey, Nigeria, South Africa, Pakistan, India, etc.
Contact Shuliy now!
Thanks for reading this article! Except for wood peeling machines, we also provide wood crushers, wood shaving machines, and other wood processing machines.
If you have any questions about the wood processing equipment, please just call our website customer service phone number (WhatsApp) directly.
Remember, our commitment is to provide you with efficient and reliable wood processing solutions, ensuring a smooth and productive operation. We look forward to partnering with you to create an excellent wood processing experience!
