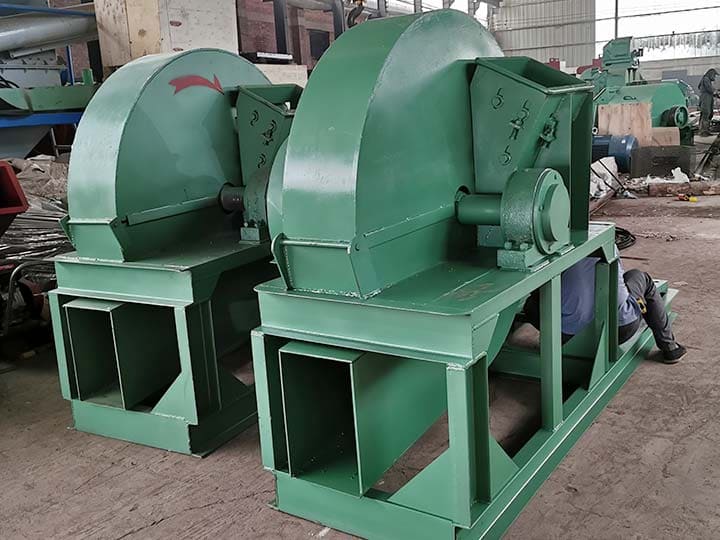

Commercial wood shaving machine efficiently cuts dry wood and branches into uniform, curled wood shavings. It operates using either electric or diesel engines.
The high-quality shavings produced are suitable for various applications, including animal bedding for horses, chickens, and pigs, and as protective fillers in shipping containers.
This machine offers adjustable shaving thicknesses and sizes and boasts a high processing efficiency, with a capacity ranging from 300 kg/h to 2,500 kg/h.
Raw materials for making wood shavings
A variety of raw materials can be used to produce wood shavings, including logs, branches, poplar, mulberry, locust wood, shrubs, and scrap building templates of various diameters and sizes.
However, for high-quality wood shavings, using peeled logs is recommended, as they result in shavings that are more uniform in size and thickness and generate less debris.
Main structure of wood shaving machine for animal bedding
The wood shavings machine is built with several key components, including the frame body, motor, pulley, and cutter head.
The cutter head is adjustable between 0.5 and 3 mm, allowing users to control the thickness of the finished wood shavings by changing the angle of its tip.
- Frame body. Provides the main structural support for the machine.
- Motor. Drives the machine’s operation.
- Pulley. Facilitates the movement of the machine.
- Cutter head. Adjustable between 0.5 and 3 mm for precise thickness control.
- Design. Lacks screens and hammers, as it produces wood shavings in a single pass.
How to make wood shavings by wood shavings machine?
- Turn on the power to start the machine and keep it in continuous operation.
- Put the wood or branches to be processed into the inlet of the wood shaving machine.
- Once the wood enters the machine inlet, it will be quickly cut into uniform wood shavings.
- The processed wood shavings are discharged through the outlet.
Working video of commercial wood shaver machine
Technical parameters of wood shaver machine
| MODEL | CAPACITY | INPUT SIZE | POWER |
| SL-420 | 300KG/H | 6cm | 7.5kw |
| SL-600 | 500KG/H | 12cm | 15kw |
| SL-800 | 1000KG/H | 16cm | 30kw |
| SL-1000 | 1500KG/H | 20cm | 55kw |
| SL-1200 | 2000KG/H | 24cm | 55kw |
| SL-1500 | 2500KG/H | 32cm | 75kw |
The log shaving machine comes in multiple models, each with varying outputs and raw material size requirements. Customers should consider these differences when purchasing. Generally, larger models offer higher output and accommodate larger feed sizes.
We provide a parameter table for the electric wood shaver machine. For diesel-driven models, customers are encouraged to contact us directly. Our Shuliy factory can customize machine models to meet specific production needs.
Features of Shuliy wood shaving machine for animal bedding
The Shuliy wood shaving machine offers various models to match raw material sizes with free installation and usage guidance, produces versatile shavings for diverse applications, ensures efficient and precise production, and features a user-friendly design for easy operation and maintenance.
- Adjustable cutter head. Customizes shaving thickness to meet specific requirements.
- Enhanced efficiency. Optimizes production speed and quality for better performance.
- Durable construction. Built to withstand heavy use and provide long-term reliability.
- Hygienic output. Produces clean, high-quality shavings ideal for animal bedding and other uses.
Applications of wood shavings
- Transportation and packaging. Wood shavings are lightweight and fluffy, making them ideal for cushioning and protecting fragile items during transport.
- Firestarter. With quick ignition properties, wood shavings are commonly used as kindling for home fireplaces in Europe and America.
- Equestrian industry. Horse farms demand wood shavings for their fluffy and absorbent qualities, providing comfortable and hygienic bedding.
- Poultry farming. Chicken farms use wood shavings to maintain a clean and dry environment, crucial for poultry health and well-being.
Trouble and solution of using wood shaving machine
1. The belt will get stuck when using a log shaving machine
Reason: the motor rotor and machine rotor are not concentric.
Solution: the position of the motor can be moved to the left and right. Or add pads under the motor feet to adjust the concentricity of the two rotors.
2. The output of wood shaving machines is relatively low
Cause: the blade is not sharp or the blade is not adjusted to the proper position.
Solution: remove the blade and sharpen the blade. Or adjust the blade to the appropriate chip position.
3. The wood shaver machine has difficulty in feeding and slow cutting
Cause: the blade is badly worn. Or the blade gap is too large or too small.
Solution: grind the blade to ensure the blade is sharp. Or adjust the fixed knife gap 2-3mm, and ensure that the blade angle cannot be greater than 30 °.
Maintenance of wood shaving machine for horse bedding
Regular maintenance of the wood shaving machine is essential for enhancing production efficiency and minimizing machine failures. Proper upkeep involves three main tasks: replacing the cutter head blades, lubricating the machine bearings, and replacing worn-out parts.
- Replace cutter head blades. Ensure optimal cutting performance by regularly changing the blades.
- Lubricate machine bearings. Fill bearings with lubricating oil to maintain smooth operation.
- Replace worn parts. Swap out vulnerable components to prevent malfunctions and maintain efficiency.
Customer cases of Shuliy log shaving machines
500kg/h wood shaving machine exported to Turkmenistan enhances local wood processing capabilities and meets the growing demand for high-quality wood shavings.
Small wood shaver machines were exported to South Africa to provide high-quality bedding for horse farms.
How is the small wood shaving machine price?
The price of wood shaving machines is often determined by the different types, structures, and performances of the wood shaving machines.
The price of a wood shaver machine varies based on material, motor brand and power, and blade quality. Users should compare these factors carefully when purchasing.
Leave your message!
In summary, choosing the right wood shaving machine involves considering various factors to achieve optimal performance and value. We are committed to providing high-quality equipment tailored to your needs and invite you to explore our full range of wood processing machinery.
Additionally, we offer a diverse selection of other wood processing machines, including sawmills, chippers, etc. to support all your wood processing requirements.
